Printheads (Cartridge Holders)

We offer a wide range of precisely engineered print cartridge holders with a total print height from 12.7 to 101.6 mm. Individual designs can be easily integrated into production lines and other industrial systems using a wide range of mounting brackets and mounting accessories. The holders are available in durable stainless steel for demanding and aggressive industrial environments or in lightweight anodized aluminum for standard operating conditions. They are powered via a connecting cable directly from the control unit.
I want to propose a printing solution
Single Head - Single print head holder
Single Head is a compact and precisely machined holder designed for one half-inch or inch cartridge. Thanks to its small dimensions, it is easy to install even in production lines with limited space, where every centimeter must be used to the maximum.
It is ideal for printing expiration dates, production data, batches, barcodes and smaller graphics. It allows the use of cartridges with a print height of 12.7 or 25.4 mm.
The holder is easily integrated into an existing system, which helps minimize downtime during installation and commissioning. A durable stainless steel version is available for demanding applications, while anodized aluminum is a lightweight solution for standard operating conditions.
Single Head - Simple stainless steel print head holder
Single Head - Simple stainless steel print head holder
Single Head - Single print head holder anodized aluminum
Single Head - Single print head holder anodized aluminum
Multi Head - multiple print head holder
Multi Head is a multiple holder designed for two to four cartridges. It allows you to stack individual print heads on top of each other to achieve a higher print height.
It is particularly suitable for marking large-format packaging, printing larger graphics, company logos, multi-line texts or other applications where the height of one cartridge is not enough. Depending on the number of print heads used, it allows you to achieve a print height of 25.4 to 101.6 mm.
Thanks to its precise and durable construction, it ensures stable cartridge placement and reliable printing even in demanding industrial operations. Like other designs, it is available in stainless steel or lightweight anodized aluminum. Installation using a suitable mounting bracket is quick and easy to adapt to a specific production line.
Multi Head - Double stainless steel print head holder
Multi Head - Double print head holder anodized aluminum
Multi Head - Triple print head holder anodized aluminum
Multi Head - Four print head holder for maximum print height
Mini Head - reduced print head holder

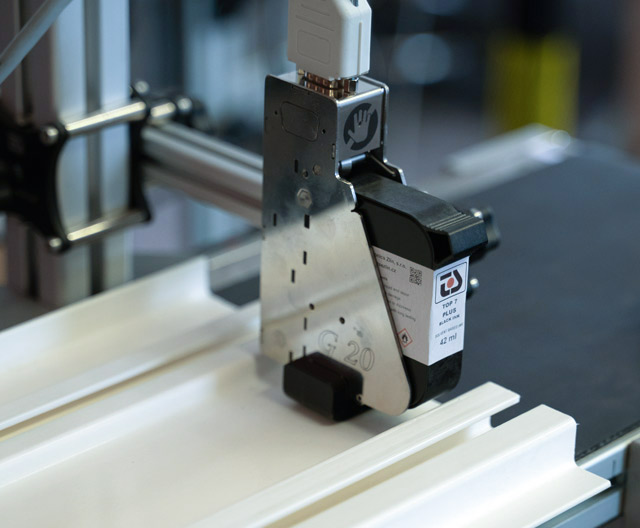

Mini Head is a reduced version of the holder designed for installations in extremely limited space. Its design was designed for applications where a standard holder or print head would not fit or would restrict the flow of the product through the production line.
The holder is designed for one half-inch or inch cartridge and is suitable for printing production data, batches, barcodes and smaller graphics. It allows the use of cartridges with a print height of 12.7 or 25.4 mm.
Mini Head představuje praktické řešení pro potisk specifických profilů, úzkých výrobků a dalších aplikací s omezenou instalační výškou. Díky široké nabídce úchytných konzolí tiskovou hlavu Mini Head snadno integrujete do stávajících i nových systémů.

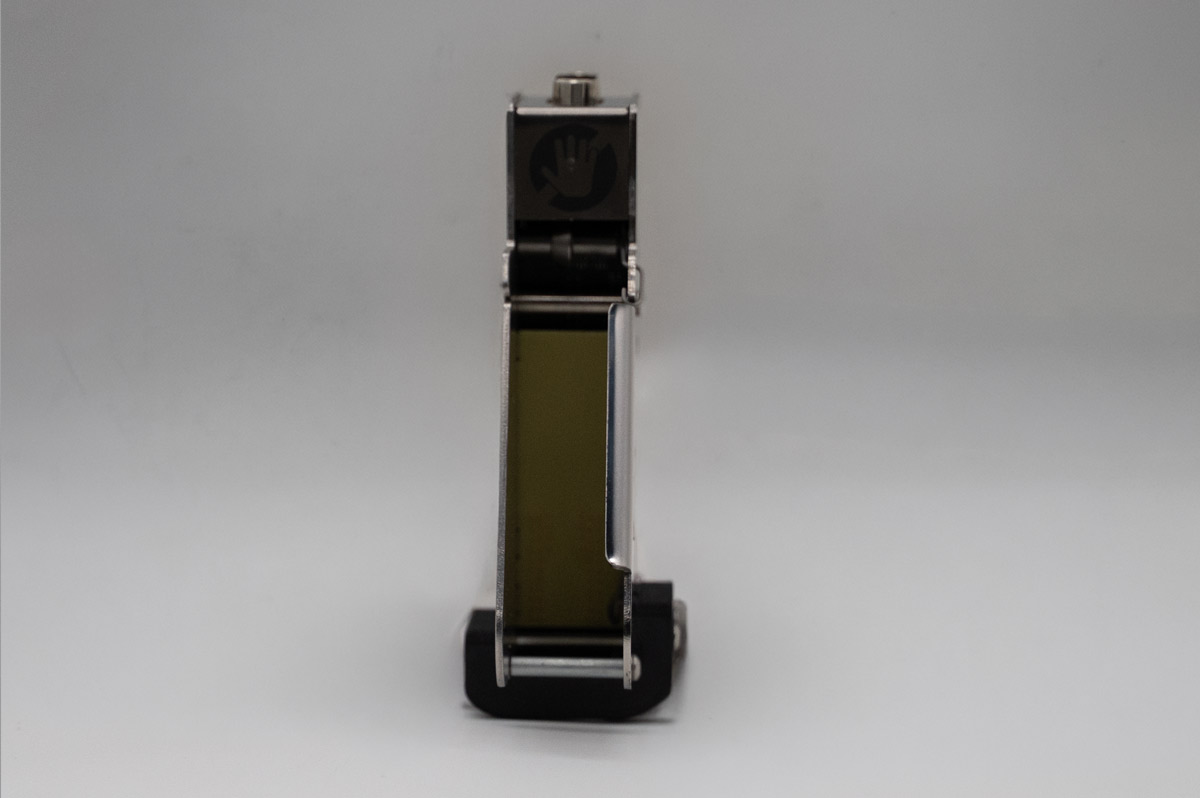

Mini Head - reduced print head holder

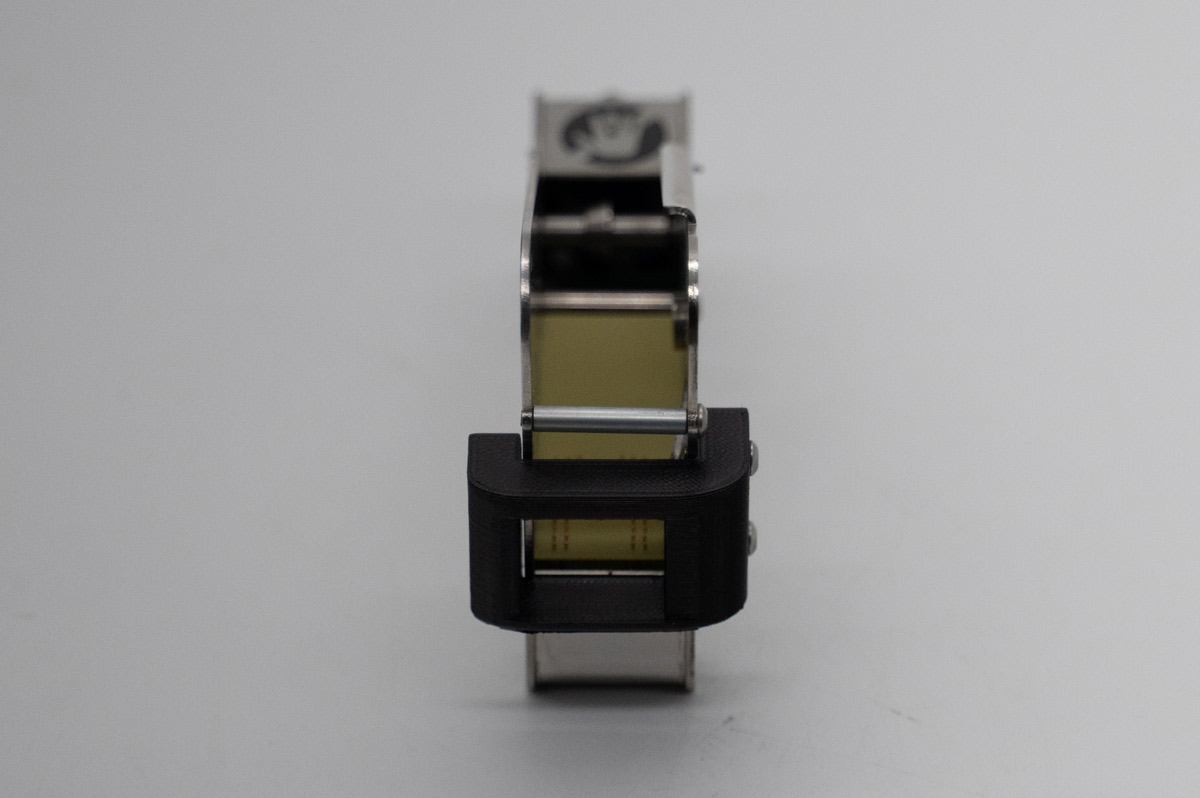

Mini Head - reduced print head holder

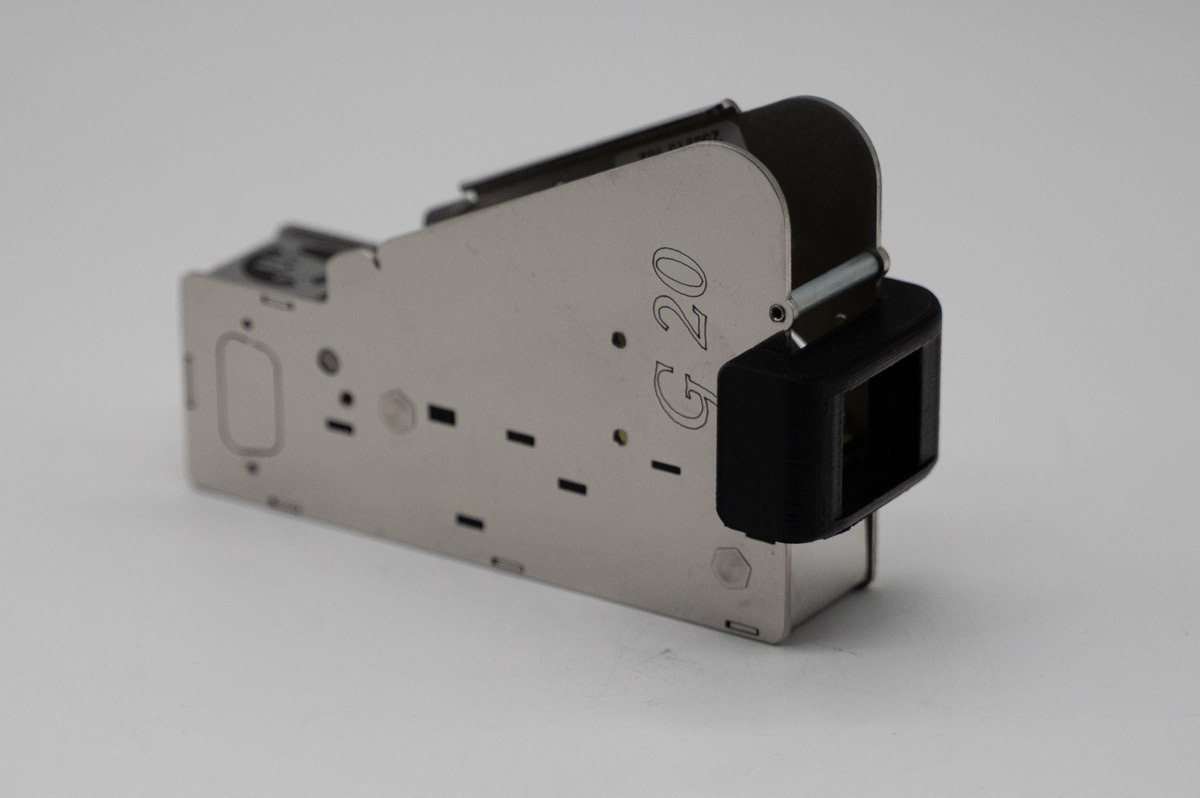

Mini Head - reduced print head holder

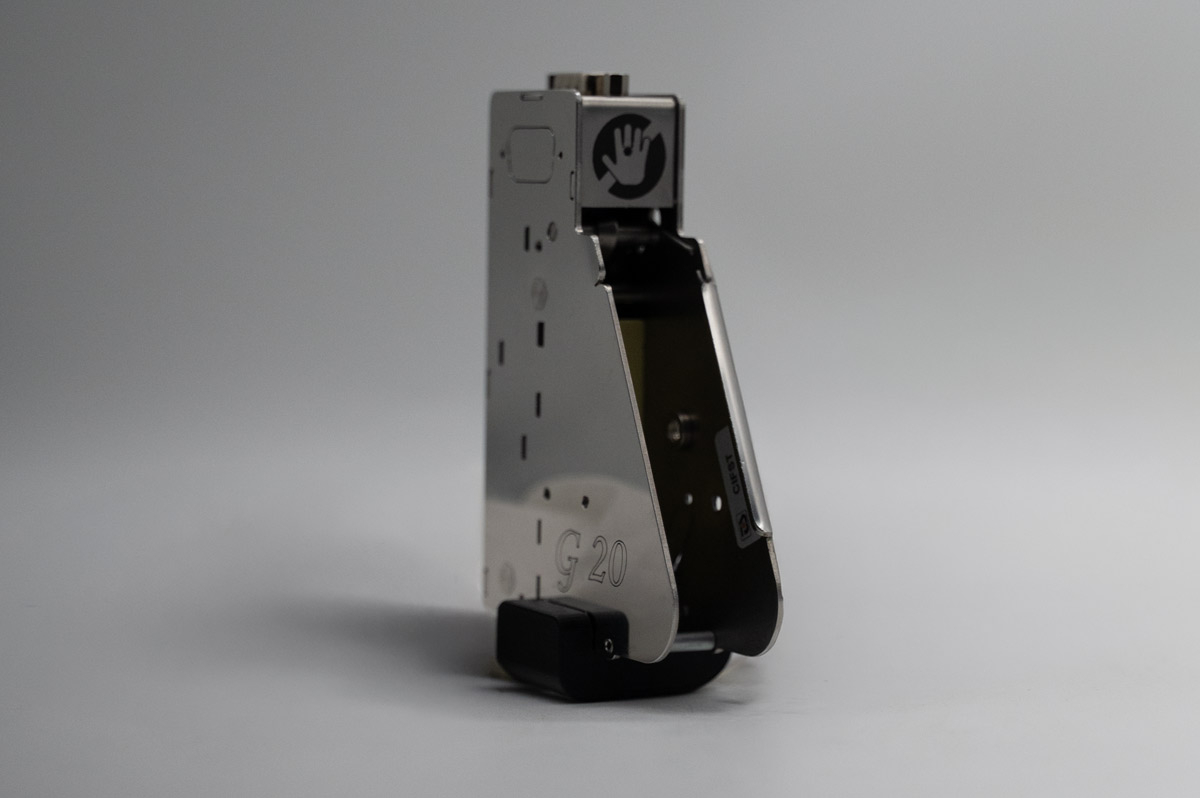

Mini Head - reduced print head holder
Two Head - holder for two print heads next to each other
Two Head is a special holder designed for two half-inch or inch cartridges. It allows you to combine two print heads in one compact solution, making it ideal for two-color marking.
It is suitable for printing contrasting texts, highlighting important data, two-color barcodes, logos and other graphic elements. Depending on the combination of cartridges used, it allows you to achieve a print height of 12.7 to 50.8 mm.
The holder ensures precise and stable positioning of both cartridges and at the same time allows easy integration into the production line. A stainless steel version is available for use in demanding conditions, while anodized aluminum offers low weight and easy handling in standard operations.
